Packaging Support
Box Templates Download

Download Box Templates

Our ready-made design rigid box templates the following:

Choose Box Type
Rigid Box

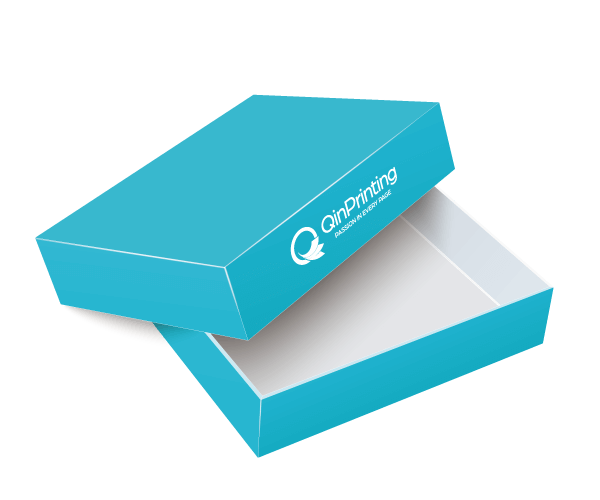

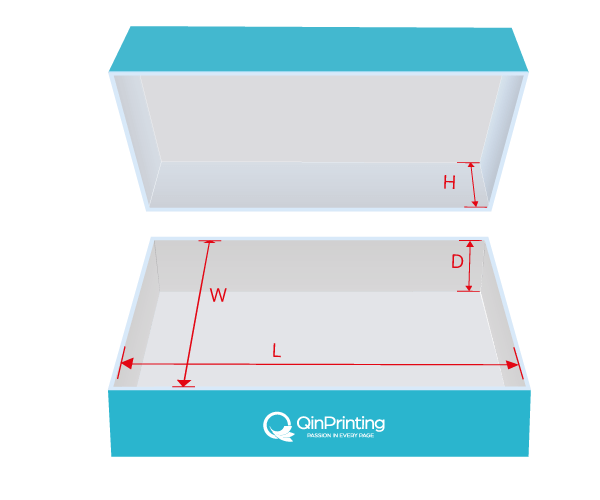

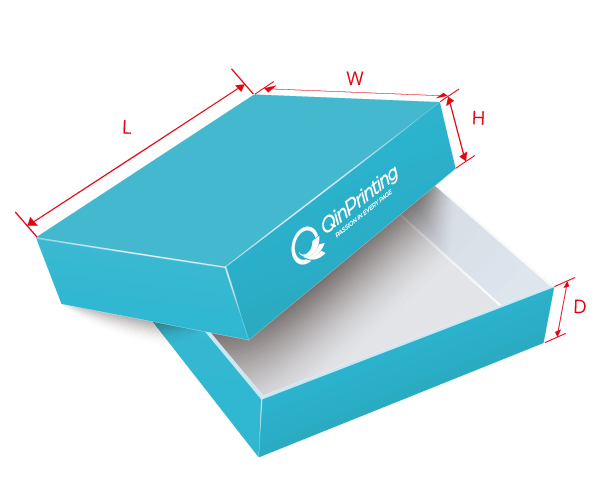

Telescope Rigid Box

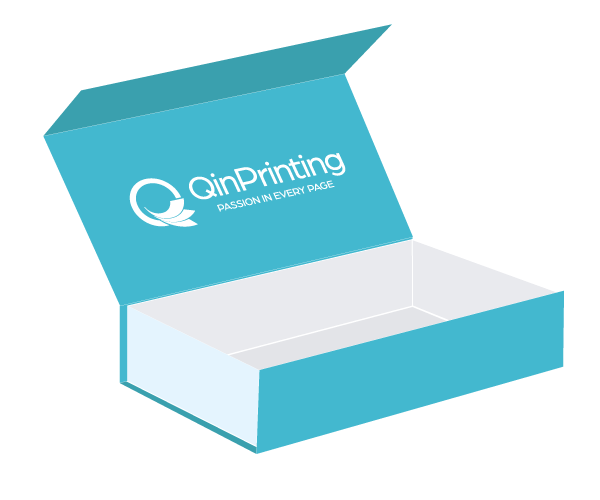

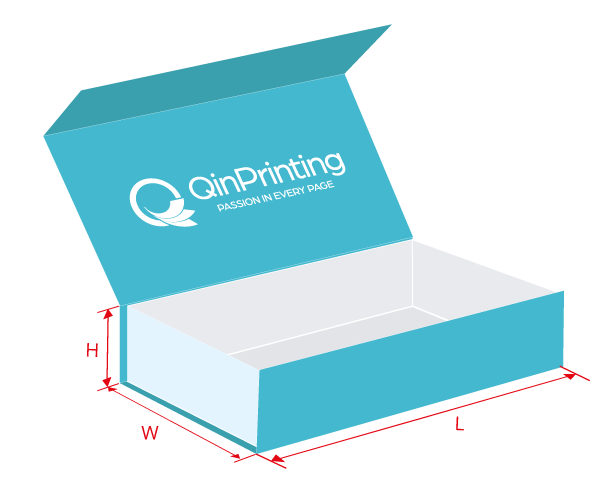

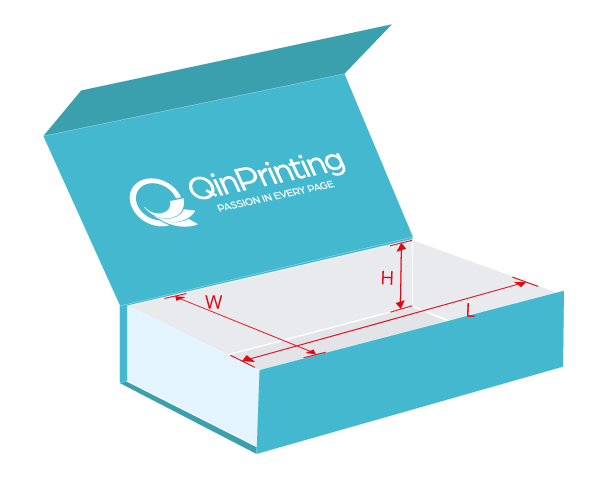

Magnetic Closure Rigid Box

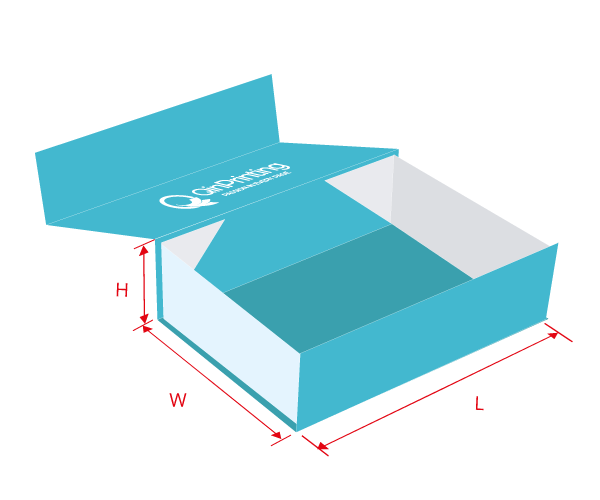

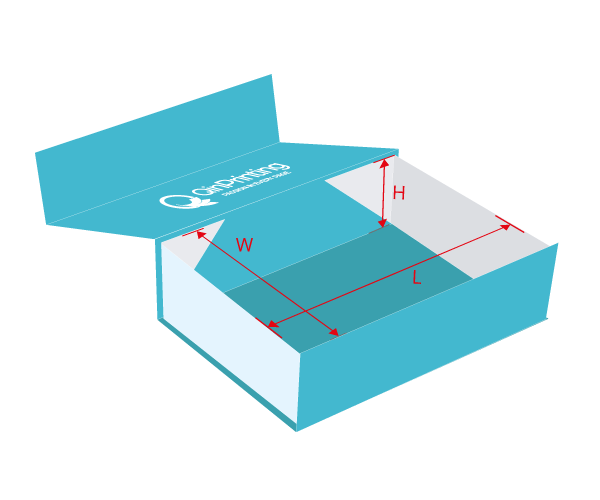

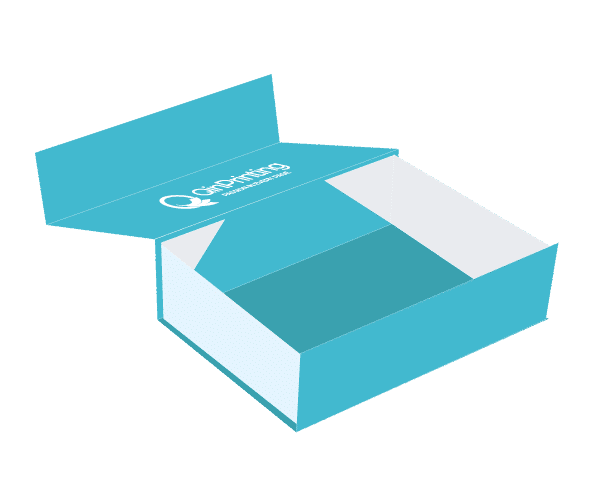

Collapsible Rigid Box
Folding Carton Box

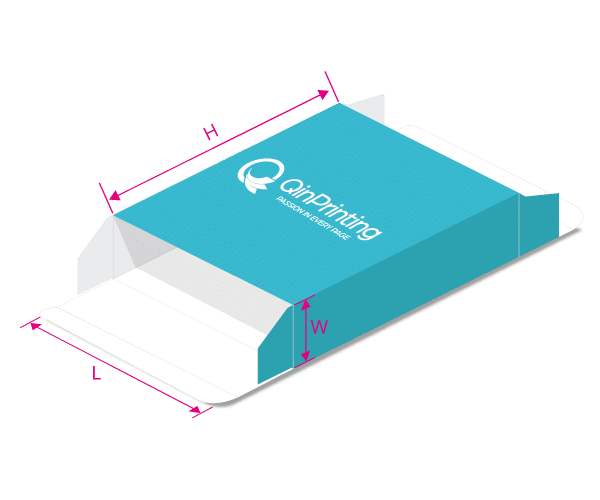

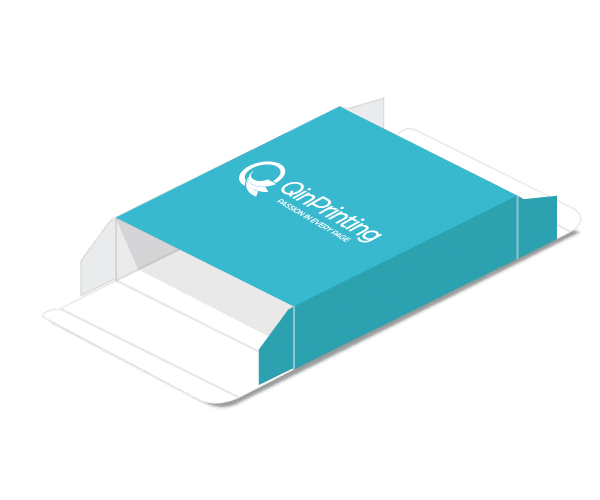

Straight Tuck End Box

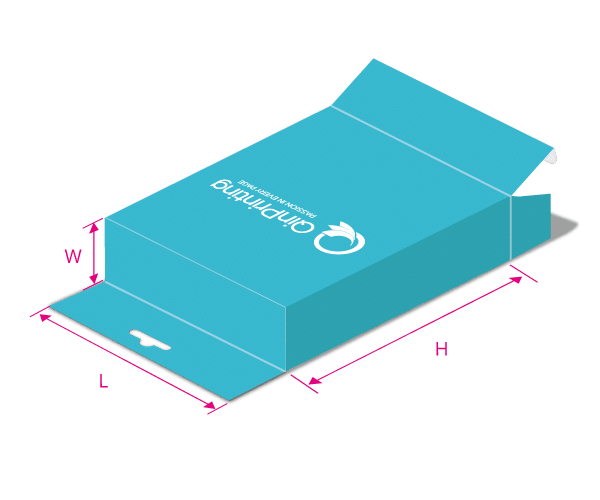

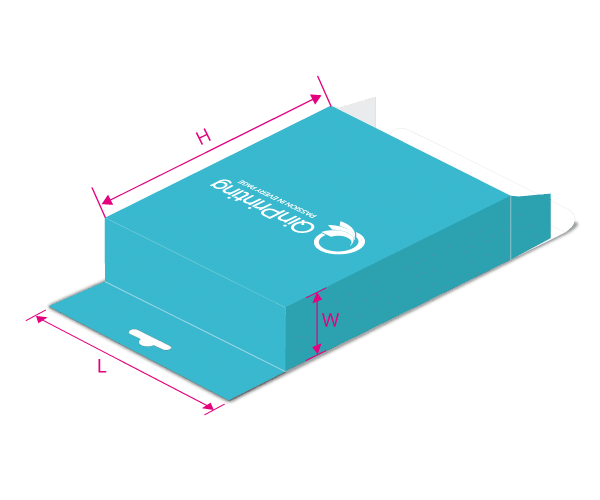

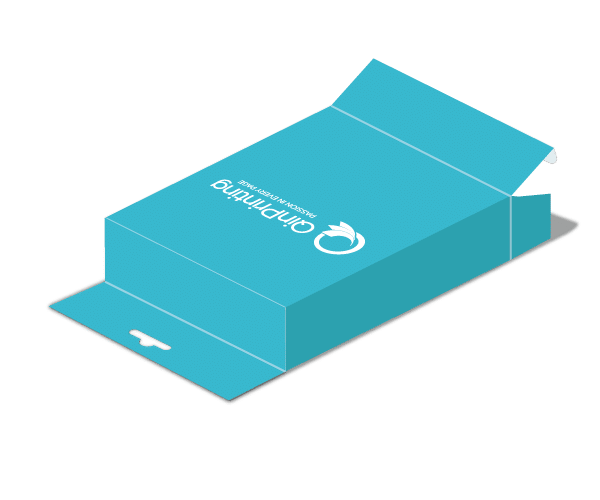

Straight Tuck End with Hang Tab Box

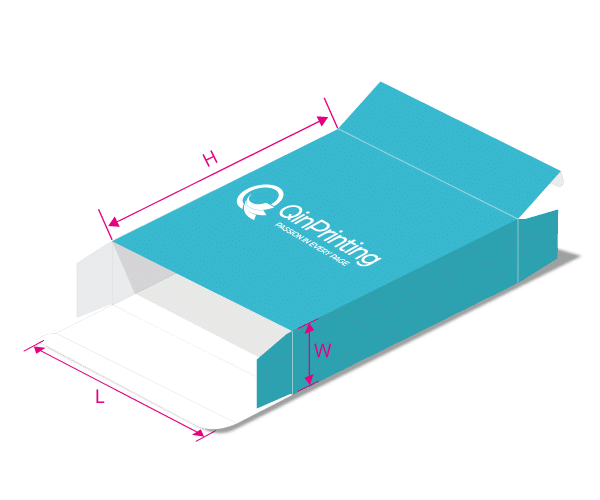

Reverse Tuck End Box

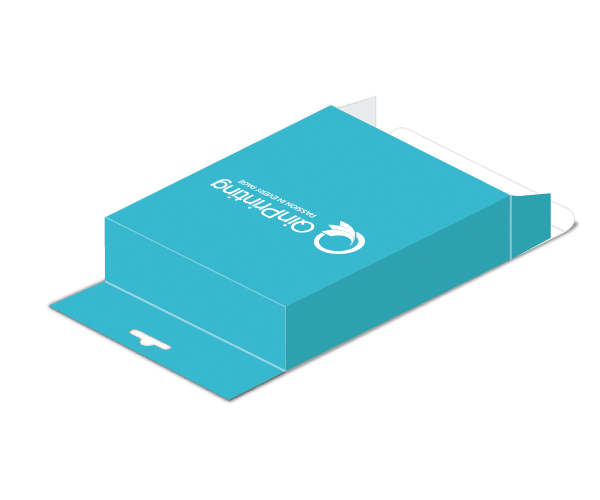

Reverse Tuck End with Hang Tab Box

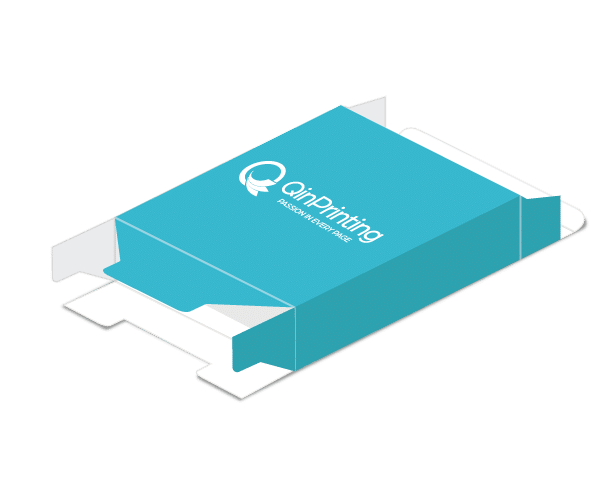

Tuck Top Snap Lock Bottom Box

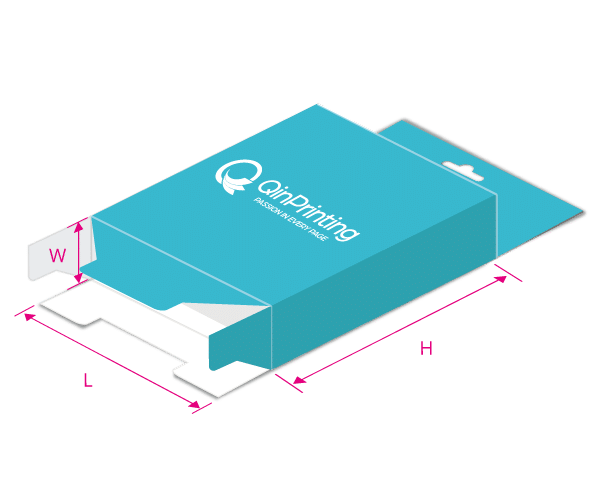

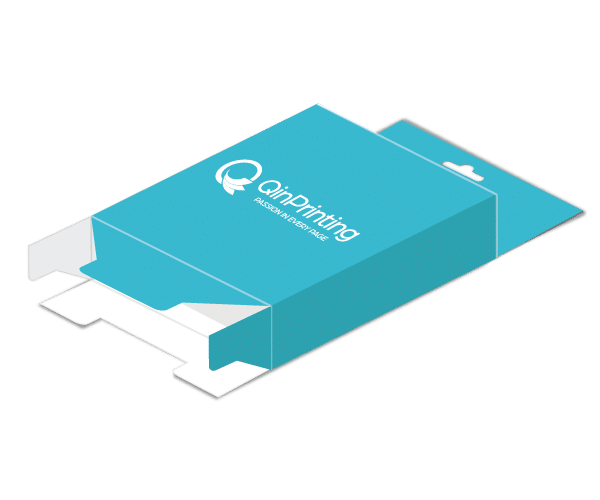

Tuck Top Snap Lock Bottom with Hang Tab Box

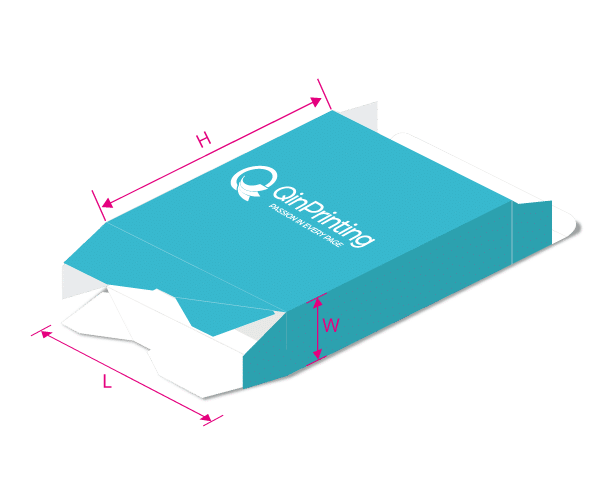

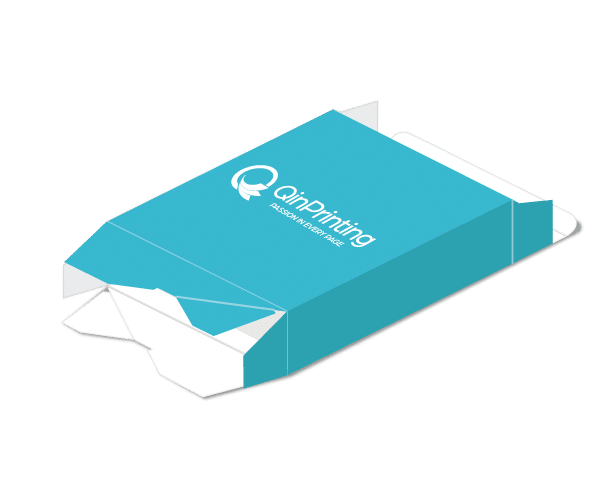

Tuck Top Auto Bottom Box

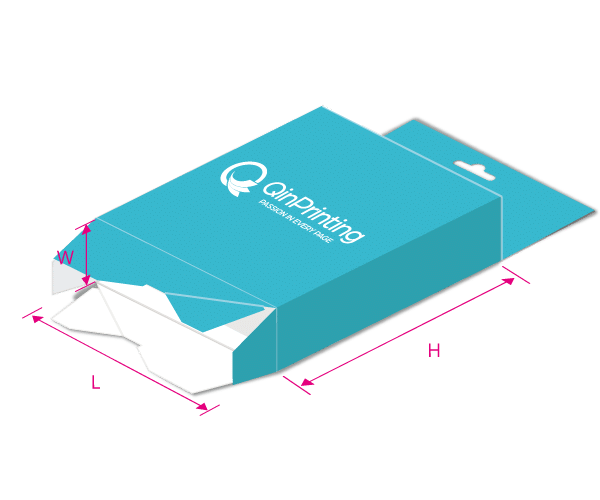

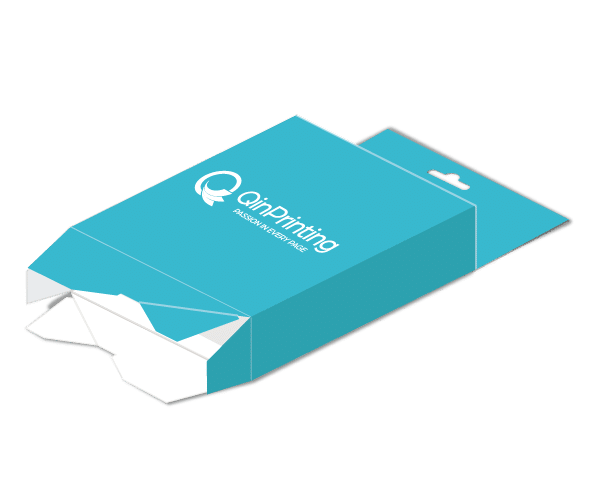

Tuck Top Auto Bottom Box with Hang Tab Box

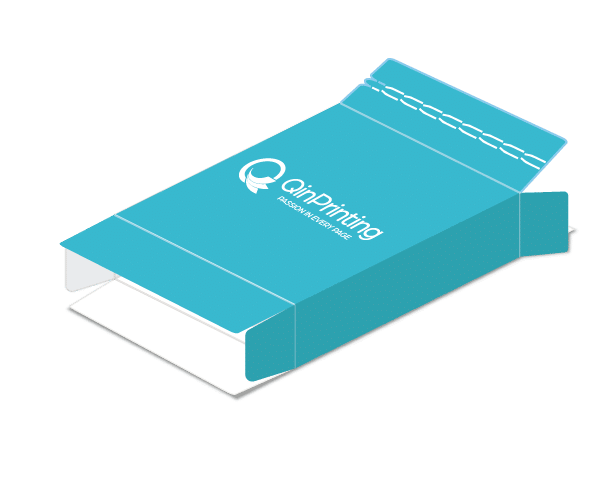

Seal End Box

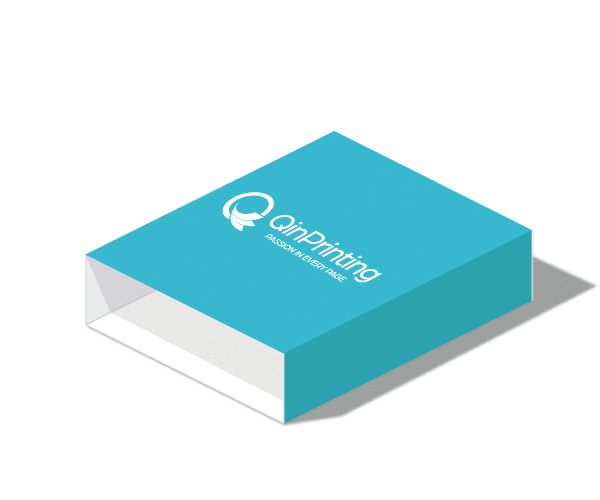

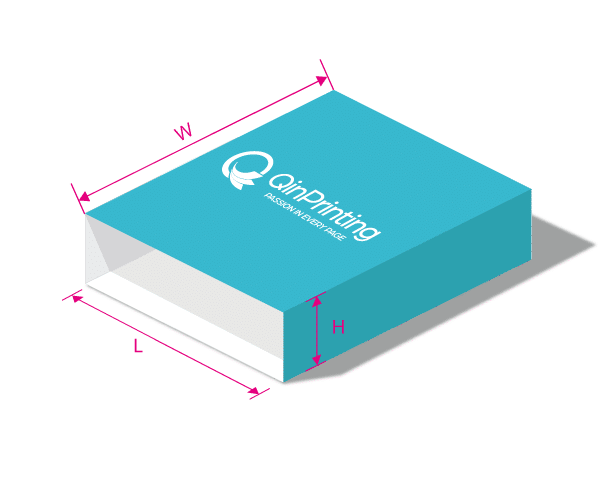

Box Sleeve
One-Piece Tuck Top Box
Inner or Outer Size
Inch or mm
Length
3.15"-23.62" 80-600 mm
Width
1.57"-15.75" 40-400 mm
Height
0.47"-5.91" 12-150 mm
Depth
min: 0.47" min: 12 mm
Hanging tab height
Greyboard Thickness
NOTE: After completing the design, please delete or hide the template, and do not include the lines of the template in the final printing file.

How to Download a Design Template

To download one of our helpful design templates, follow these simple steps:

  1. Choose the box style you need and click on the appropriate image above.
  2. Fill in the form from the dropdown menus to specify the dimensions of your box.
  3. Once you’ve filled in the form, just click the “Download template”.
  4. Click “save” to download the template to your computer.

How to Use Your Design Template

All our templates are in PDF format. The first page of each template includes the size (width and height) of your project and simple guidelines for the bleed lines, trim lines, and spine area. When using the templates, please follow these guidelines:

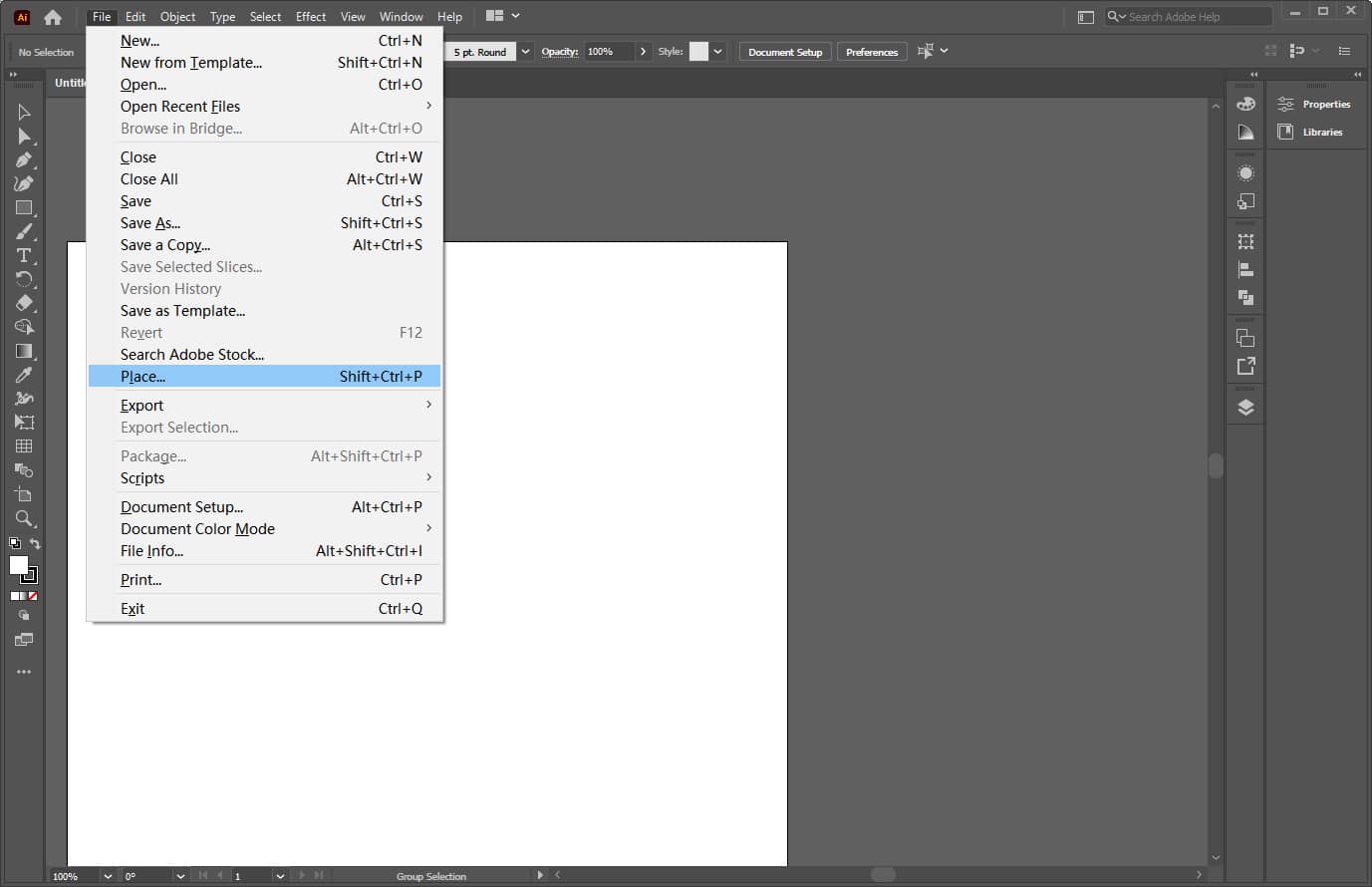

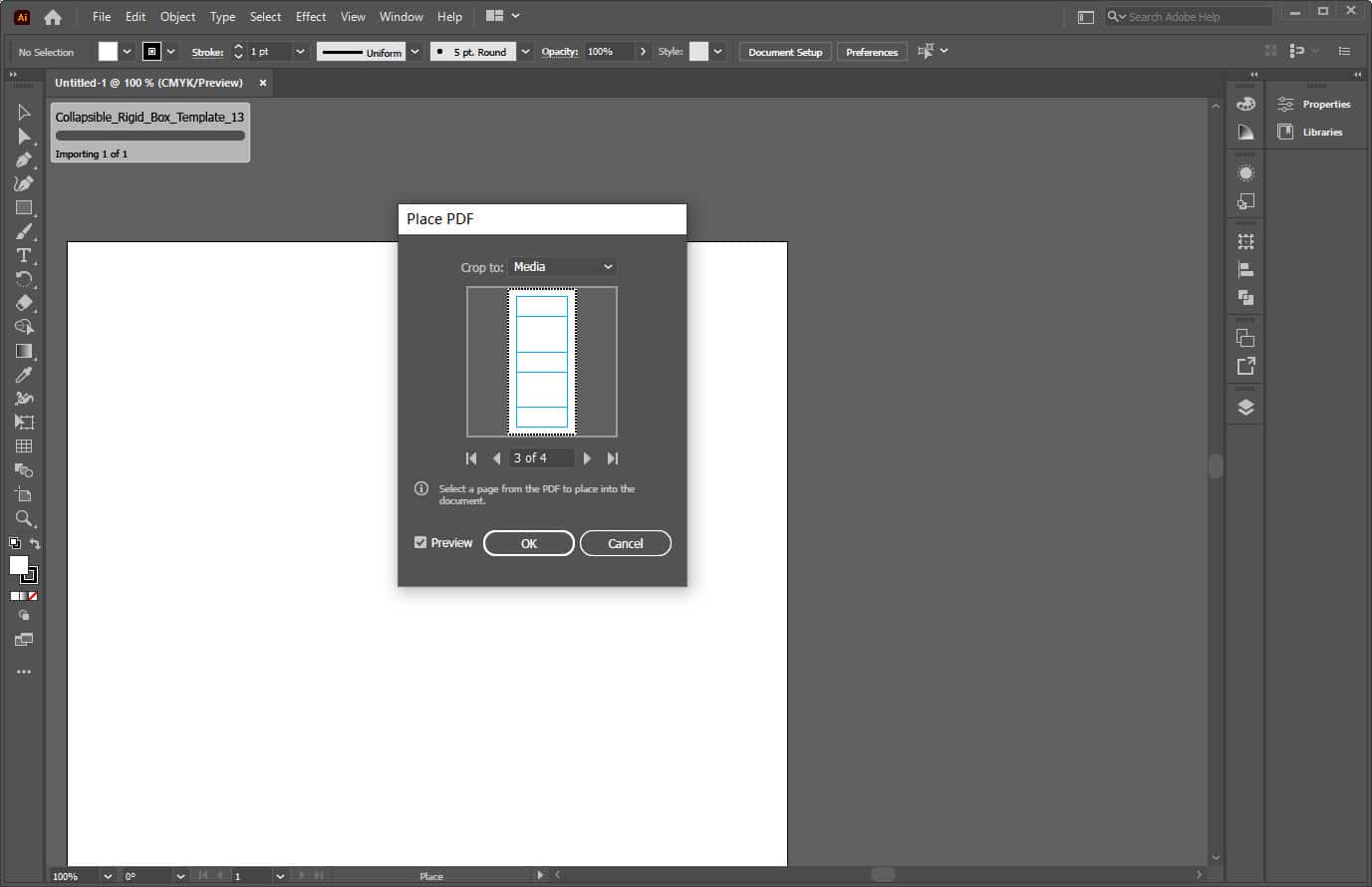

If you use Adobe Illustrator software, please place the template directly or open it using Illustrator

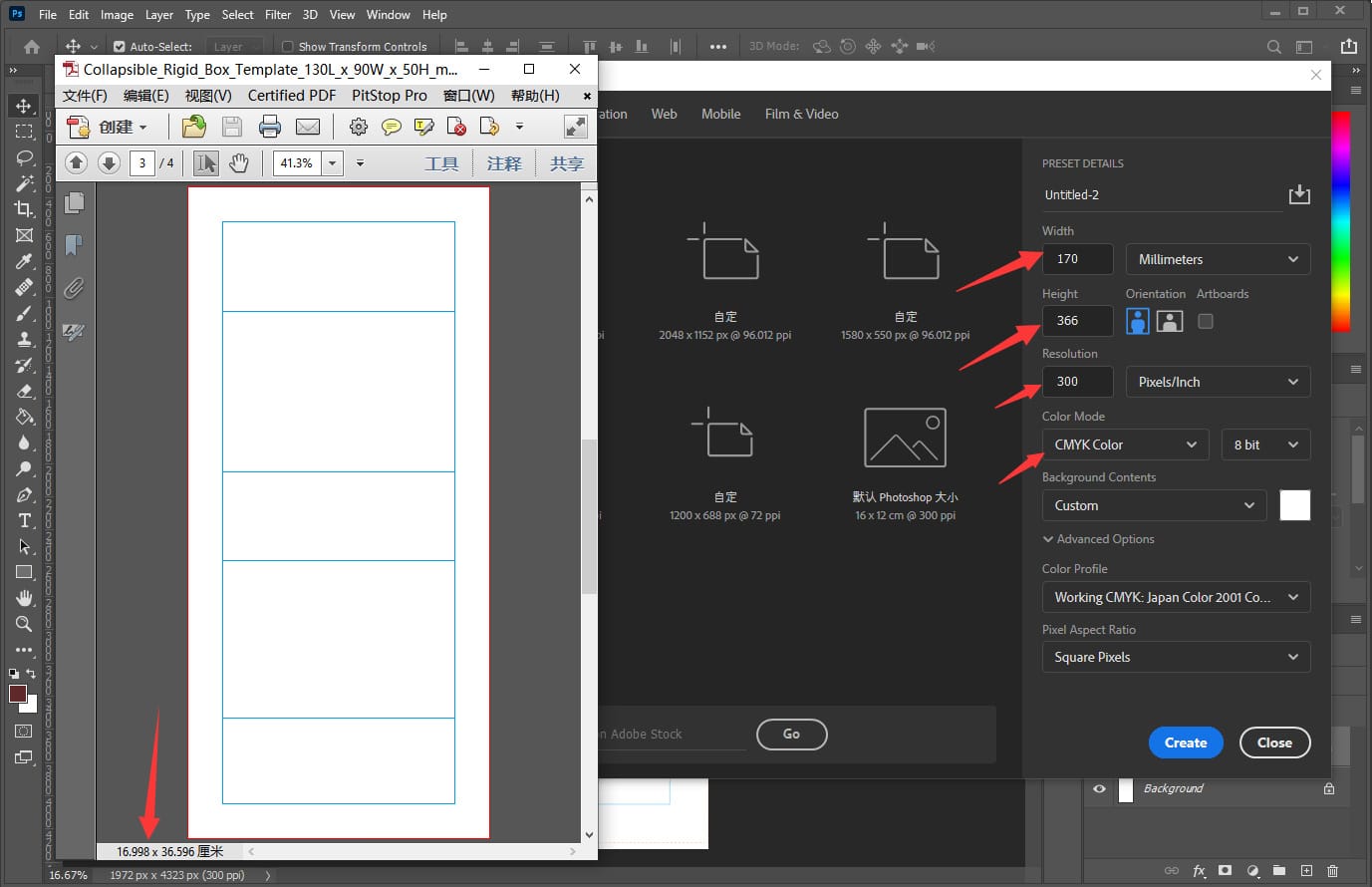

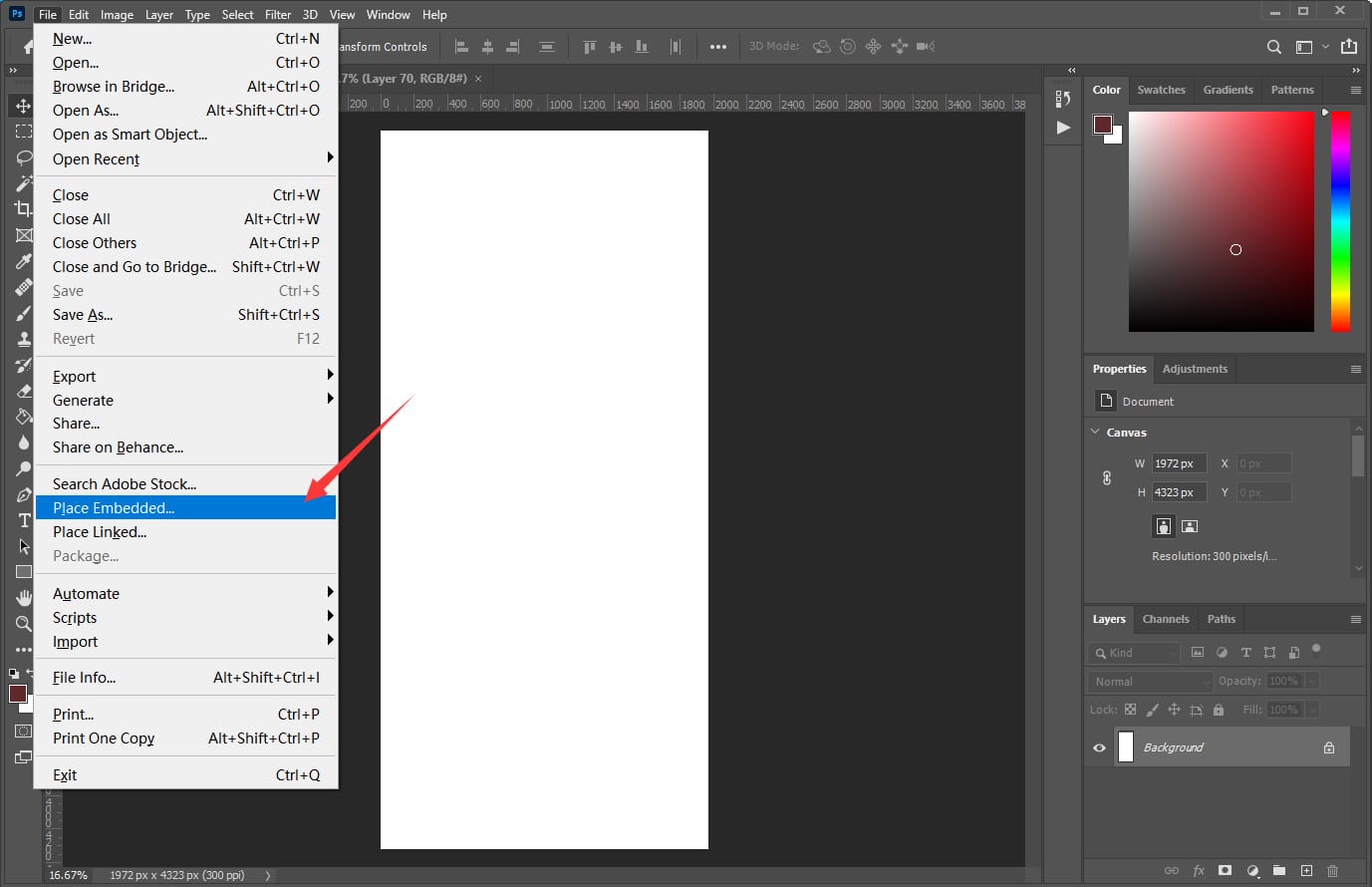

When using Photoshop, you’ll need to set up a new PSD file for the template size or open the template directly into Photoshop. But don’t import the template to an opened PSD as it will change the size.

Other Tips

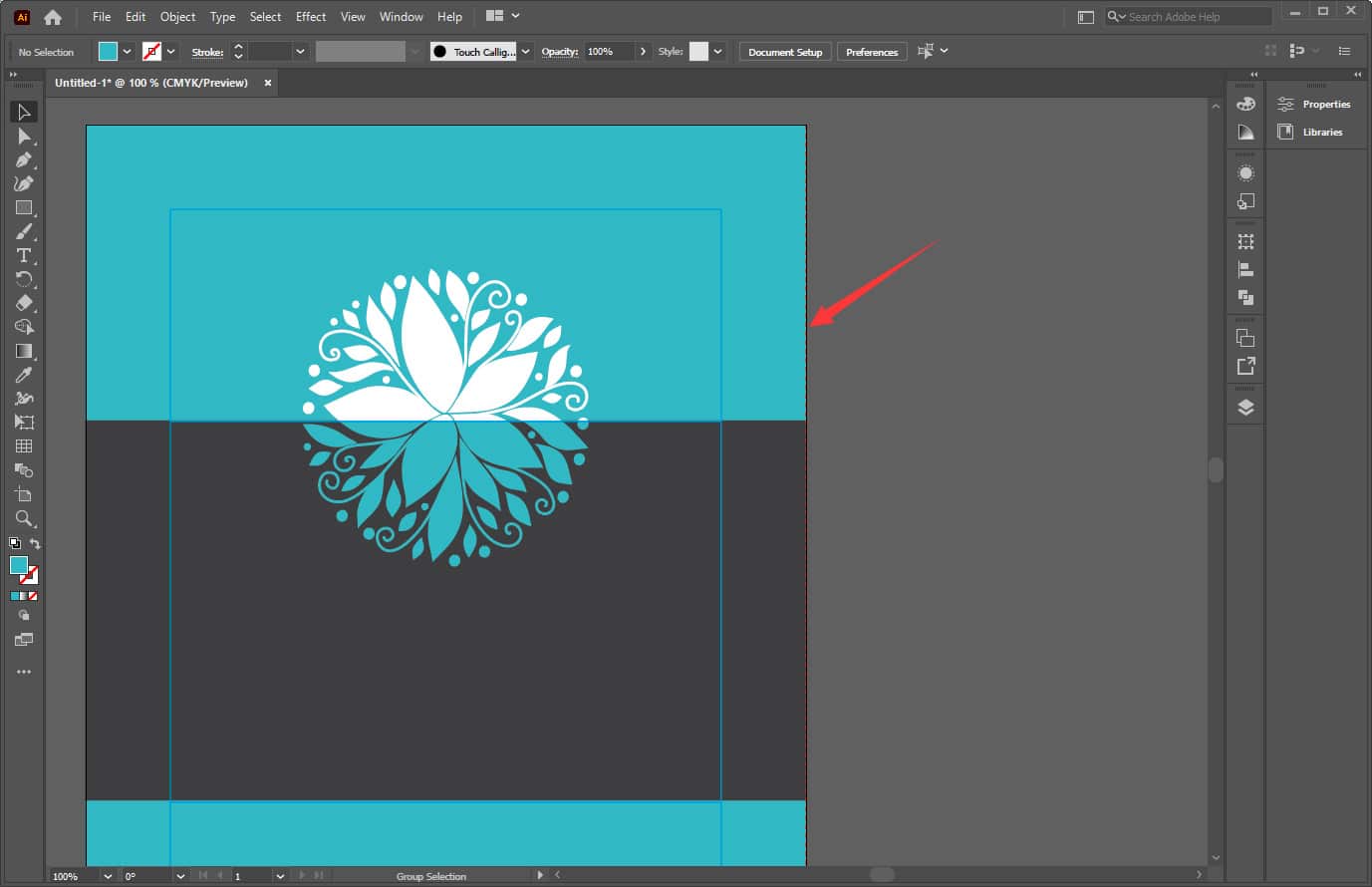

It’s important to neither shrink nor enlarge the template. So, in Illustrator, adjust the “artboard size” to fit and if you’re using InDesign, make the “page size” the same as the template. The size of your artwork should fit to the bleed (the red dotted frame). If your artwork already has the correct bleed, it’s fine to fit it to the trim line (the blue dotted frame). Any images or background colors must extend to the limit of the bleed to allow for binding and cutting tolerance and make sure than none of your artwork is lost in the print

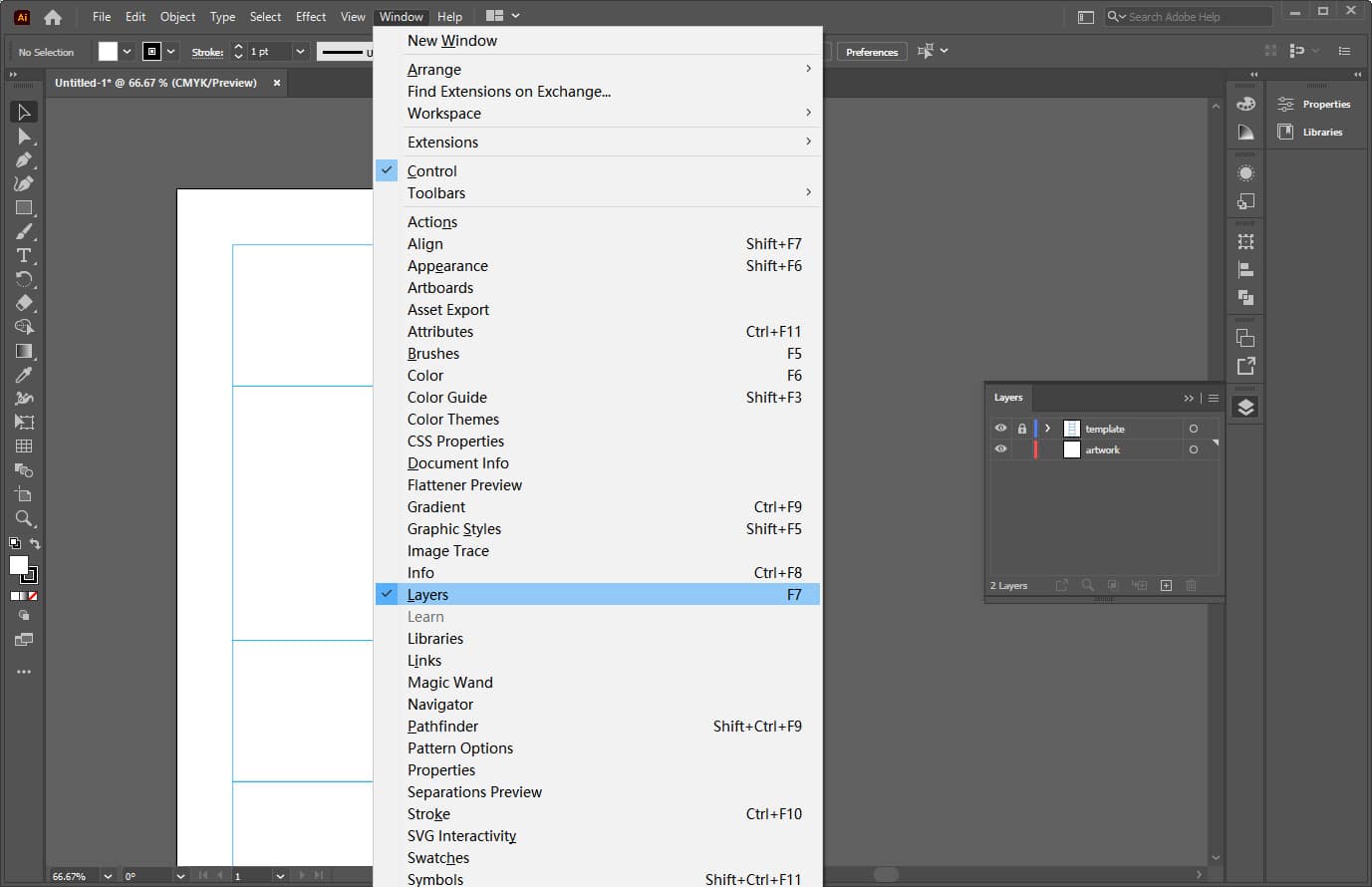

Work with the template and the content/artwork in different layers. Hide or delete the templates when you’re done designing
